Creating tools for thermoforming can be achieved using various manufacturing methods, including Fused Deposition Modeling (FDM) 3D printing.
In this article, we will explore the benefits of using filament 3D printing to create thermoforming tools in more detail. We will also provide best practices and helpful tips. By understanding the potential of this technology and its use in the thermoforming industry, you can make informed decisions about which method of tooling fabrication is best for you.
What is filament 3D printing?
Filament 3D printing is an additive manufacturing technology that uses a continuous filament of thermoplastic material to produce 3D objects. The process involves melting and extruding the material layer by layer, building the object from the bottom up.
The technology behind filament 3D printing is called FDM (fused deposition modeling) or FFF (fused filament fabrication). These terms are used interchangeably today, as they refer to almost identical manufacturing processes.
FDM parts can be produced faster and at a lower cost compared to other additive manufacturing technologies, with varying quality and properties. FDM 3D printers are also compatible with a wide range of materials, enabling a broad range of applications.
Filament 3D printing advantages for thermoforming
Below are a few of filament 3D printing’s many advantages. Those listed here are more relevant to the creation of thermoforming tools.
Cost-effective
Filament 3D printing is one of the most cost-effective manufacturing technologies, mainly due to the lower cost of equipment needed for its full manufacturing workflow. With most materials, there are no post-processing costs, and material cost can be lower compared to more expensive consumables.
This makes filament 3D printing an ideal choice when making thermoforming tools during early prototype stages, where multiple tests are required.
Clean manufacturing

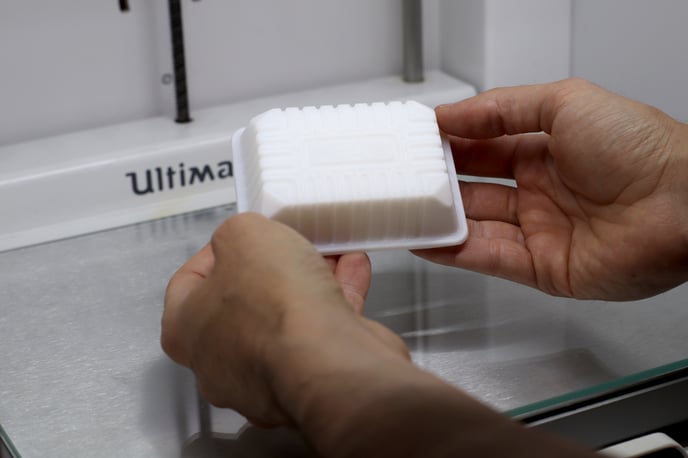

FDM 3D printing is a clean manufacturing process that generates almost no waste. Because of the materials used, you can remove the parts from the 3D printer by hand once they're finished. No post-processing is necessary, although you may choose to remove support materials or smooth the surface. This allows you to go directly from the 3D printer to the Mayku Multiplier, without any additional steps, keeping your workspace clean.
Fast prototyping
Filament 3D printing is incredibly versatile when it comes to manufacturing speed. The hardware capabilities and slicing software allow you to reduce the print time and get results quickly. For example, when making large templates used during early prototyping, you can use a 1mm nozzle and thick layers. This way, you can produce parts in hours instead of days.
FDM 3D printed thermoforming tool
Designing and manufacturing thermoforming tools
Here are a few tips and best practices to keep in mind when designing and manufacturing thermoforming tools with filament 3D printing.
Layer height
As with all 3D printing technologies, the thinner the layer, the smoother the surface. For thermoforming tools made with filament 3D printing, we recommend using layer heights between 0.1 and 0.2 mm to create tools with a subtle layered texture. This will significantly improve the de-molding experience.
If you're making large prototype tools without vertical walls, you can increase the layer height, although testing is always recommended.
UltiMaker Cura: Layer thickness preview
Tool draft angle

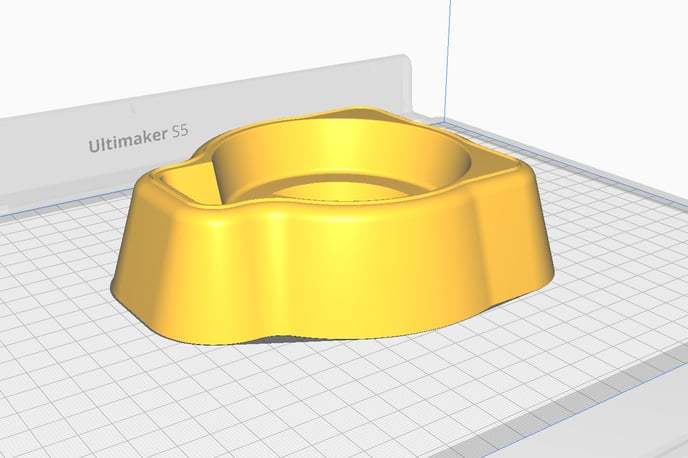

We recommend a minimum of 5° draft angle to achieve the best possible forming and tool release. However, tools made by filament 3D printing have a layered surface texture that makes the demolding process more difficult compared to tools with a smooth surface. If you cannot increase the draft angle of your tool, consider sanding or smoothing its surface before forming it.
Nozzle diameter

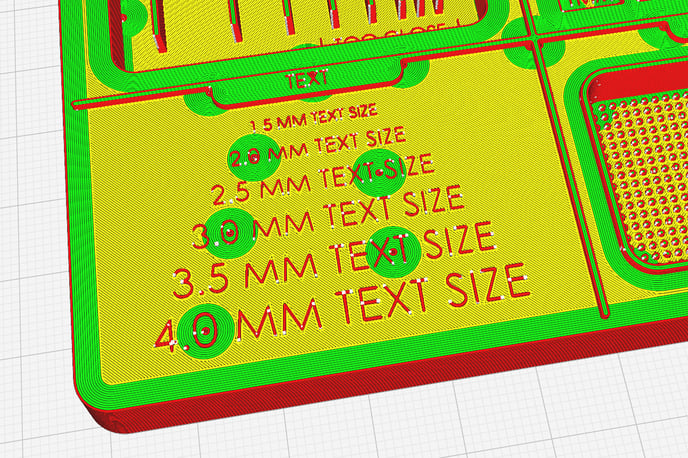

Most 3D printers that use filament come with a standard 0.4 mm nozzle. If you need to create small tools with high precision or small design features, you can use a 0.25 mm nozzle. However, if you're making large, simple tools, you should consider upgrading to a larger 0.8 mm nozzle. This will enable you to 3D print faster, and the resulting tools will be more durable.
Shell thickness

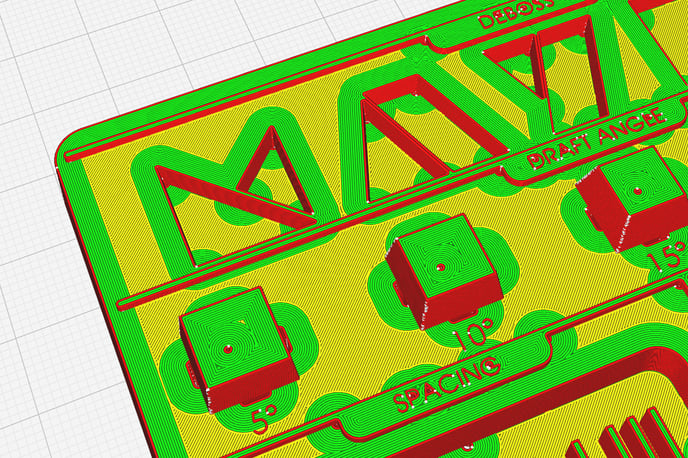

Large and hollow tools are prone to deformation when formed with pressure and heat, especially when using a powerful pressure forming machine, like the Multiplier. To increase tool strength, we recommend making tools with a 3-5 mm shell thickness. It's best to test with different thicknesses to find the right one.
When making thermoforming tools, the thickness of the top part plays a critical role as it will be in contact with the hot plastic sheet for the longest period of time. Consider increasing the thickness of the top part to match the vertical wall thickness to prevent deformation due to pressure and heat.
Infill density

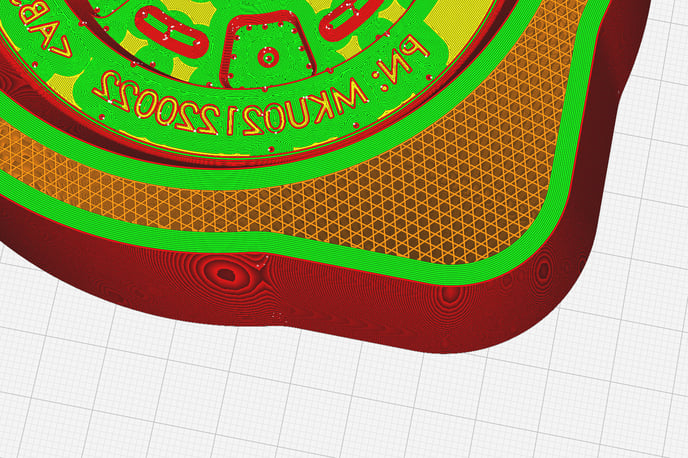

A higher infill density makes a part more resistant, making it an excellent choice for any project. A recommended infill density of 50% is a good starting point, but testing is highly recommended.
A high infill density ensures that your part is strong enough to withstand pressure and heat conditions. It also ensures that the part can be reused, making it ideal for projects that require extensive testing.
Air hole size
We suggest using tapered air holes. These should be no more than 0.4 mm in diameter on the surface of the tool and no more than 2 mm in diameter on the tool's bottom.

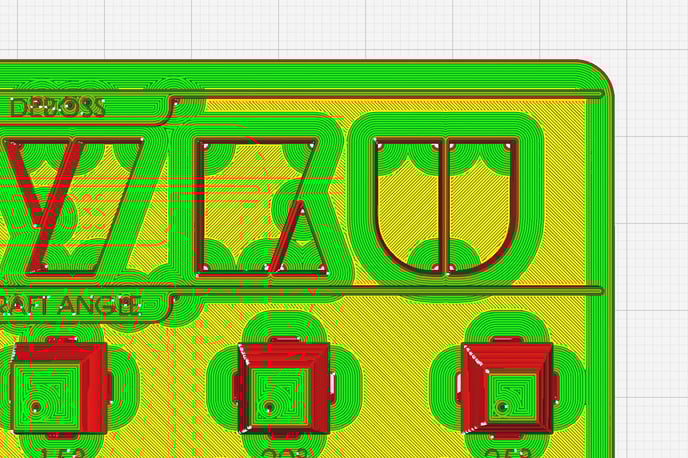

Tapered air holes in a thermoforming tool
Using larger nozzles and composite materials may slightly affect your 3D printer's tolerances. Therefore, we recommend testing your 3D printer to ensure that the air holes are not blocked when printing using standard settings.

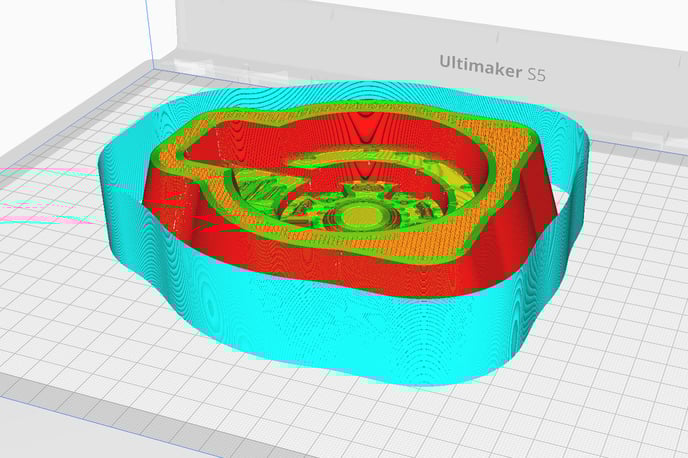

Draft shield
When 3D printing with engineering materials to make thermoforming tools, it is recommended to add a draft shield when preparing the model for 3D printing. This will help reduce warping and ensure better overall quality of the part.
Recommended filament material
When creating thermoforming tools with filament 3D printing, we recommend engineering materials such as Ultimaker Nylon, which exhibit high thermal stability and higher heat deflection temperatures, as well as high tensile strength.
While thermoforming tools made with other filament materials such as ABS, PETG, or HIPS are compatible with Mayku’s 3D forming machines like the Mayku FormBox, they tend to work best for early prototyping. Final tools, however, should be created with engineering materials, which offer better mechanical properties.
Best uses for FDM 3D Printing thermoforming tools
Filament 3D printing is an ideal technology for creating thermoforming tools due to its fast prototyping capabilities, cost-effective large print size, and lack of post-processing. Here are some scenarios where filament 3D printing can be especially beneficial:
- Early prototyping. With filament 3D printing, you can quickly test different designs and shapes, speeding up the prototyping process.
- Large tools. Filament 3D printing offers the best print size-cost ratio, making it ideal for large tools you want to form on the Mayku Multiplier.
- In-house testing: Filament 3D printing's lack of post-processing makes it a great technology to have in your studio alongside Mayku's 3D formers.
